文件选择器
今天给大家分享下文件选择器的作用 ， 具体就是获取用户在在SD卡选中的文件/文件夹路径 ，类似于C#中OpenFileDialog控件(对C#的一站式开发还是念念不忘)。功能实现起来比较简单，主要是帮助大家节省开发时间。
网上流传较广的一个成品如下 <[Android实例] 文件选择器>， 本文也是根据上面的成品修改而成，使其更易理解，效率更高。 除此之外，主要特色有：
1、我们监听了用户按下Back键的事件，使其返回上一层目录；
2、针对不同的文件类型(文件vs文件夹 ， 目标文件vs其他文件)做了特殊处理。
知识点一、 File 类的使用
文件选择器的主要功能是：浏览文件\文件夹、文件类型等；都是通过Java File类来实现的。

知识点二、调用方法说明
使用了startActivityForResult()发起调用以及onActivityResult()方法接受回调后的信息。

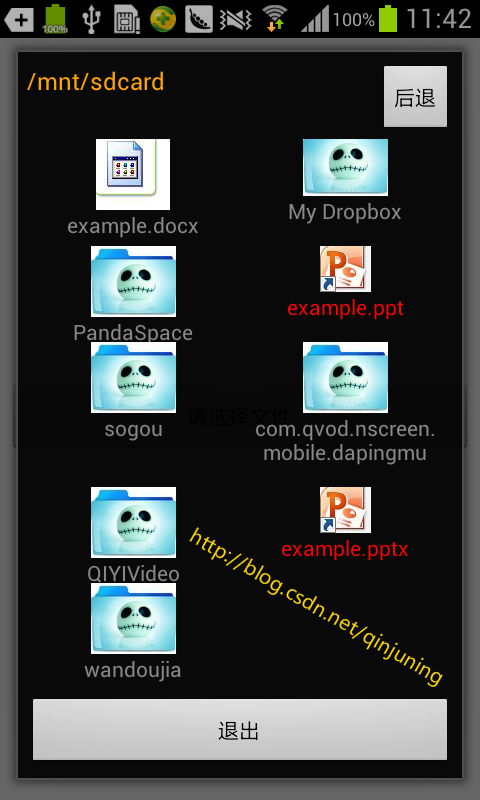

截图如下：

其他的也没什么好说了，大家看看代码注释吧~~  so easy  - - 。

FileChooserActivity.java 实现文件选择的类 。

public class CopyOfFileChooserActivity extends Activity {

  private String mSdcardRootPath ; //sdcard 根路径
  private String mLastFilePath ;  //当前显示的路径

  private ArrayList<FileInfo> mFileLists ;
  private FileChooserAdapter mAdatper ;

  //配置适配器
  private void setGridViewAdapter(String filePath) {
    updateFileItems(filePath);
    mAdatper = new FileChooserAdapter(this , mFileLists);
    mGridView.setAdapter(mAdatper);
  }
  //根据路径更新数据，并且通知Adatper数据改变
  private void updateFileItems(String filePath) {
    mLastFilePath = filePath ;
    mTvPath.setText(mLastFilePath);

    if(mFileLists == null)
      mFileLists = new ArrayList<FileInfo>() ;
    if(!mFileLists.isEmpty())
      mFileLists.clear() ;

    File[] files = folderScan(filePath);
    if(files == null)
      return ;
    for (int i = 0; i < files.length; i++) {
      if(files[i].isHidden()) // 不显示隐藏文件
        continue ;

      String fileAbsolutePath = files[i].getAbsolutePath() ;
      String fileName = files[i].getName();
      boolean isDirectory = false ;
      if (files[i].isDirectory()){
        isDirectory = true ;
      }
      FileInfo fileInfo = new FileInfo(fileAbsolutePath , fileName , isDirectory) ;
      //添加至列表
      mFileLists.add(fileInfo);
    }
    //When first enter , the object of mAdatper don't initialized
    if(mAdatper != null)
      mAdatper.notifyDataSetChanged(); //重新刷新
  }
  //获得当前路径的所有文件
  private File[] folderScan(String path) {
    File file = new File(path);
    File[] files = file.listFiles();
    return files;
  }
  private AdapterView.OnItemClickListener mItemClickListener = new OnItemClickListener() {
    public void onItemClick(AdapterView<?> adapterView, View view, int position,
        long id) {
      FileInfo fileInfo = (FileInfo)(((FileChooserAdapter)adapterView.getAdapter()).getItem(position));
      if(fileInfo.isDirectory())  //点击项为文件夹, 显示该文件夹下所有文件
        updateFileItems(fileInfo.getFilePath()) ;
      else if(fileInfo.isPPTFile()){ //是ppt文件 ， 则将该路径通知给调用者
        Intent intent = new Intent();
        intent.putExtra(EXTRA_FILE_CHOOSER, fileInfo.getFilePath());
        setResult(RESULT_OK , intent);
        finish();
      }
      else {  //其他文件.....
        toast(getText(R.string.open_file_error_format));
      }
    }
  };
  public boolean onKeyDown(int keyCode , KeyEvent event){
    if(event.getAction() == KeyEvent.ACTION_DOWN && event.getKeyCode()
      == KeyEvent.KEYCODE_BACK){
      backProcess();
      return true ;
    }
    return super.onKeyDown(keyCode, event);
  }
  //返回上一层目录的操作
  public void backProcess(){
    //判断当前路径是不是sdcard路径 ， 如果不是，则返回到上一层。
    if (!mLastFilePath.equals(mSdcardRootPath)) {
      File thisFile = new File(mLastFilePath);
      String parentFilePath = thisFile.getParent();
      updateFileItems(parentFilePath);
    }
    else {  //是sdcard路径 ，直接结束
      setResult(RESULT_CANCELED);
      finish();
    }
  }
}

界面依旧很丑陋，囧 ，大家可以根据需要在此基础上添加功能，下面选择目录也基本上同理。

目录选择器

chooserdialog.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:orientation="vertical"
  android:layout_width="fill_parent"
  android:layout_height="fill_parent"
  >

  <LinearLayout
    android:orientation="horizontal"
    android:layout_width="fill_parent"
    android:layout_height="40dip">
  <Button
    android:layout_width="40dip"
    android:layout_height="40dip"
    android:text="HOME"
    android:id="@+id/btn_home"
    android:layout_gravity="left"
    android:layout_weight="1"
  />
  <LinearLayout android:layout_width="140dip"
    android:layout_height="35dip"
    android:id="@+id/dir_layout"
    android:gravity="center"
    android:layout_weight="1">
    </LinearLayout>
  <!-- <TextView
    android:layout_width="140dip"
    android:layout_height="35dip"
    android:id="@+id/dir_str"
    android:gravity="center"
    android:layout_weight="1"
  /> -->
  <Button
    android:layout_width="40dip"
    android:layout_height="40dip"
    android:text="BACK"
    android:id="@+id/btn_back"
    android:layout_gravity="right"
    android:layout_weight="1"
  />
  </LinearLayout>
  <ListView
    android:layout_width="fill_parent"
    android:layout_height="300dip"
    android:id="@+id/list_dir"
  />
  <Button
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:id="@+id/btn_ok"
    android:text="OK"/>
</LinearLayout>

package hkp.dirchooser;
import java.io.File;
import java.util.ArrayList;
import java.util.List;

import android.app.Dialog;
import android.content.Context;
import android.os.Bundle;
import android.os.Environment;
import android.os.Handler;
import android.view.Gravity;
import android.view.View;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.EditText;
import android.widget.LinearLayout;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;


public class DirChooserDialog extends Dialog implements android.view.View.OnClickListener{

  private ListView list;
  ArrayAdapter<String> Adapter;
  ArrayList<String> arr=new ArrayList<String>();

  Context context;
  private String path;

  private TextView title;
  private EditText et;
  private Button home,back,ok;
  private LinearLayout titleView;

  private int type = 1;
  private String[] fileType = null;

  public final static int TypeOpen = 1;
  public final static int TypeSave = 2;

  /**
   * @param context
   * @param type 值为1表示创建打开目录类型的对话框，2为创建保存文件到目录类型的对话框
   * @param fileType 要过滤的文件类型,null表示只选择目录
   * @param resultPath 点OK按钮返回的结果，目录或者目录+文件名
   */
  public DirChooserDialog(Context context,int type,String[]fileType,String resultPath) {
    super(context);
    // TODO Auto-generated constructor stub
    this.context = context;
    this.type = type;
    this.fileType = fileType;
    this.path = resultPath;
  }
  /* (non-Javadoc)
   * @see android.app.Dialog#dismiss()
   */
  @Override
  public void dismiss() {
    // TODO Auto-generated method stub
    super.dismiss();
  }
  /* (non-Javadoc)
   * @see android.app.Dialog#onCreate(android.os.Bundle)
   */
  @Override
  protected void onCreate(Bundle savedInstanceState) {
    // TODO Auto-generated method stub
    super.onCreate(savedInstanceState);
    setContentView(R.layout.chooserdialog);

    path = getRootDir();
    arr = (ArrayList<String>) getDirs(path);
    Adapter = new ArrayAdapter<String>(context,android.R.layout.simple_list_item_1, arr);

    list = (ListView)findViewById(R.id.list_dir);
    list.setAdapter(Adapter);

    list.setOnItemClickListener(lvLis);

    home = (Button) findViewById(R.id.btn_home);
    home.setOnClickListener(this);

    back = (Button) findViewById(R.id.btn_back);
    back.setOnClickListener(this);

    ok = (Button) findViewById(R.id.btn_ok);
    ok.setOnClickListener(this);

    titleView = (LinearLayout) findViewById(R.id.dir_layout);

    if(type == TypeOpen){
      title = new TextView(context);
      titleView.addView(title);
      title.setText(path);
    }else if(type == TypeSave){
      et = new EditText(context);
      et.setWidth(240);
      et.setHeight(70);
      et.setGravity(Gravity.CENTER);
      et.setPadding(0, 2, 0, 0);
      titleView.addView(et);
      et.setText("wfFileName");
    }
//   title = (TextView) findViewById(R.id.dir_str);
//   title.setText(path);

  }
  //动态更新ListView
  Runnable add=new Runnable(){

    @Override
    public void run() {
      // TODO Auto-generated method stub
      arr.clear();
//System.out.println("Runnable path:"+path);

      //必须得用这种方法为arr赋值才能更新
      List<String> temp = getDirs(path);
      for(int i = 0;i < temp.size();i++)
        arr.add(temp.get(i));
      Adapter.notifyDataSetChanged();
    }
  };

  private OnItemClickListener lvLis=new OnItemClickListener(){
    @Override
    public void onItemClick(AdapterView<?> arg0, View arg1, int arg2,
        long arg3) {
      String temp = (String) arg0.getItemAtPosition(arg2);
//System.out.println("OnItemClick path1:"+path);
      if(temp.equals(".."))
        path = getSubDir(path);
      else if(path.equals("/"))
        path = path+temp;
      else
        path = path+"/"+temp;

//System.out.println("OnItemClick path2"+path);
      if(type == TypeOpen)
        title.setText(path);

      Handler handler=new Handler();
      handler.post(add);
    }
  };

  private List<String> getDirs(String ipath){
    List<String> file = new ArrayList<String>();
//System.out.println("GetDirs path:"+ipath);
    File[] myFile = new File(ipath).listFiles();
    if(myFile == null){
      file.add("..");

    }else
      for(File f: myFile){
        //过滤目录
        if(f.isDirectory()){
          String tempf = f.toString();
          int pos = tempf.lastIndexOf("/");
          String subTemp = tempf.substring(pos+1, tempf.length());
//         String subTemp = tempf.substring(path.length(),tempf.length());
          file.add(subTemp);
//System.out.println("files in dir:"+subTemp);
        }
        //过滤知道类型的文件
        if(f.isFile() && fileType != null){
          for(int i = 0;i< fileType.length;i++){
            int typeStrLen = fileType[i].length();

            String fileName = f.getPath().substring(f.getPath().length()- typeStrLen);
            if (fileName.toLowerCase().equals(fileType[i])) {
              file.add(f.toString().substring(path.length()+1,f.toString().length()));
            }
          }
        }
      }

    if(file.size()==0)
      file.add("..");

//   System.out.println("file[0]:"+file.get(0)+" File size:"+file.size());
    return file;
  }
  /* (non-Javadoc)
   * @see android.view.View.OnClickListener#onClick(android.view.View)
   */
  @Override
  public void onClick(View v) {
    // TODO Auto-generated method stub
    if(v.getId() == home.getId()){
      path = getRootDir();
      if(type == TypeOpen)
        title.setText(path);
      Handler handler=new Handler();
      handler.post(add);
    }else if(v.getId() == back.getId()){
      path = getSubDir(path);
      if(type == TypeOpen)
        title.setText(path);
      Handler handler=new Handler();
      handler.post(add);
    }else if(v.getId() == ok.getId()){
      dismiss();
      if(type == TypeSave)
        path = path+"/"+et.getEditableText().toString()+".wf";
      Toast.makeText(context, path, Toast.LENGTH_SHORT).show();
    }


  }

  private String getSDPath(){
      File sdDir = null;
      boolean sdCardExist = Environment.getExternalStorageState()
                .equals(android.os.Environment.MEDIA_MOUNTED);  //判断sd卡是否存在
      if(sdCardExist)
      {
       sdDir = Environment.getExternalStorageDirectory();//获取根目录
     }
      if(sdDir == null){
//Toast.makeText(context, "No SDCard inside!",Toast.LENGTH_SHORT).show();
        return null;
      }
      return sdDir.toString();

  }

  private String getRootDir(){
    String root = "/";

    path = getSDPath();
    if (path == null)
      path="/";

    return root;
  }

  private String getSubDir(String path){
    String subpath = null;

    int pos = path.lastIndexOf("/");

    if(pos == path.length()){
      path = path.substring(0,path.length()-1);
      pos = path.lastIndexOf("/");
    }

    subpath = path.substring(0,pos);

    if(pos == 0)
      subpath = path;

    return subpath;
  }
}

package hkp.dirchooser;

import android.app.Activity;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;

public class MainActivity extends Activity {
  /** Called when the activity is first created. */
  @Override
  public void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.main);
    Button btn = (Button) findViewById(R.id.btn_open);
    btn.setOnClickListener(new OnClickListener() {

      @Override
      public void onClick(View v) {
        // TODO Auto-generated method stub
        String path = null;
        String [] fileType = {"dst"};//要过滤的文件类型列表
        DirChooserDialog dlg = new DirChooserDialog(MainActivity.this,2,fileType,path);
        dlg.setTitle("Choose dst file dir");
        dlg.show();

      }
    });
  }
}
