左右侧滑功能是比较常见的效果,此实例实现如下的效果:
![]() |
![]() |
![]() |
![]() |
这边使用到的SlideNavigationController开源类(引入源代码中的Source),其为NavigationController子类,在运用程序AppDelegate就设置为其根视图;主要代码如下:
1:AppDelegate主要代码如下:
#import "AppDelegate.h"
#import "SlideNavigationController.h"
#import "leftViewController.h"
#import "rightViewController.h"
#import "ViewController.h"
- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
self.window = [[UIWindow alloc] initWithFrame:[[UIScreen mainScreen] bounds]];
self.window.backgroundColor = [UIColor whiteColor];
//设置根导航视图
ViewController *homeVc = [[ViewController alloc] init];
[self.window setRootViewController:[[SlideNavigationController alloc] initWithRootViewController:homeVc]];
//设置左右视图
leftViewController* leftController=[[leftViewController alloc]init];
rightViewController* rightController=[[rightViewController alloc]init];
[SlideNavigationController sharedInstance].rightMenu = rightController;
[SlideNavigationController sharedInstance].leftMenu = leftController;
[SlideNavigationController sharedInstance].menuRevealAnimationDuration = .18;
[self.window makeKeyAndVisible];
return YES;
}
2:主页面ViewController代码:
#import <UIKit/UIKit.h> #import "SlideNavigationController.h" @interface ViewController : UIViewController<SlideNavigationControllerDelegate> @end
#import "ViewController.h"
@interface ViewController ()
@end
@implementation ViewController
- (void)viewDidLoad {
[super viewDidLoad];
self.view.backgroundColor=[UIColor yellowColor];
self.title=@"首页";
UIButton *button = [[UIButton alloc] initWithFrame:CGRectMake(0, 0, 40, 30)];
[button setTitle:@"右边" forState:UIControlStateNormal];
[button setTitleColor:[UIColor blackColor] forState:UIControlStateNormal];
[button addTarget:[SlideNavigationController sharedInstance] action:@selector(toggleRightMenu) forControlEvents:UIControlEventTouchUpInside];
UIBarButtonItem *rightBarButtonItem = [[UIBarButtonItem alloc] initWithCustomView:button];
[SlideNavigationController sharedInstance].rightBarButtonItem = rightBarButtonItem;
}
- (void)didReceiveMemoryWarning {
[super didReceiveMemoryWarning];
// Dispose of any resources that can be recreated.
}
#PRagma mark - SlideNavigationController Methods -
- (BOOL)slideNavigationControllerShouldDisplayLeftMenu
{
return YES;
}
- (BOOL)slideNavigationControllerShouldDisplayRightMenu
{
return YES;
}
@end
注意要实现SlideNavigationControllerDelegate的两个是否有左跟右的菜单,还可以设置其导航栏的按键样式,如果没有设置会像左边出现的这种默认的;
3:左边视图leftViewController
#import <UIKit/UIKit.h> #import "SlideNavigationController.h" #import "OneViewController.h" #import "TwoViewController.h" @interface leftViewController : UIViewController<UITableViewDelegate, UITableViewDataSource> @end
#import "leftViewController.h" @interface leftViewController() @property(nonatomic,strong)UITableView *tableView; @property(strong,nonatomic) NSArray *listData;
@property(assign,nonatomic) bool slideOutAnimationEnabled;
@end
@implementation leftViewController
-(void)viewDidLoad
{
[super viewDidLoad];
self.view.backgroundColor=[UIColor redColor];
[self ininLoadTable];
}
-(void)ininLoadTable
{
self.tableView=[[UITableView alloc]initWithFrame:self.view.frame style:UITableViewStylePlain];
self.tableView.delegate=self;
self.tableView.dataSource=self;
[self.view addSubview:self.tableView];
self.listData=[[NSArray alloc] initWithObjects:@"朋友圈",@"个人好友",@"最近联系人", nil];
}
#pragma mark - UITableView Delegate & Datasrouce -
- (NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section
{
return self.listData.count;
}
- (UIView *)tableView:(UITableView *)tableView viewForHeaderInSection:(NSInteger)section
{
UIView *view = [[UIView alloc] initWithFrame:CGRectMake(0, 0, self.tableView.frame.size.width, 20)];
view.backgroundColor = [UIColor clearColor];
return view;
}
- (CGFloat)tableView:(UITableView *)tableView heightForHeaderInSection:(NSInteger)section
{
return 20;
}
- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath
{
UITableViewCell *cell = [tableView dequeueReusableCellWithIdentifier:@"Cell"];
if (cell==nil) {
cell=[[UITableViewCell alloc] initWithStyle:UITableViewCellStyleDefault reuseIdentifier:@"Cell"];
}
cell.textLabel.text=self.listData[indexPath.row];
cell.backgroundColor = [UIColor clearColor];
return cell;
}
//跳转
- (void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)indexPath
{
UIViewController *vc ;
switch (indexPath.row)
{
case 0:
vc = [[OneViewController alloc]init];
break;
case 1:
vc = [[TwoViewController alloc]init];
break;
case 2:
vc = [[OneViewController alloc]init];
break;
case 3:
[self.tableView deselectRowAtIndexPath:[self.tableView indexPathForSelectedRow] animated:YES];
[[SlideNavigationController sharedInstance] popToRootViewControllerAnimated:YES];
return;
break;
}
[[SlideNavigationController sharedInstance] popToRootAndSwitchToViewController:vc
withSlideOutAnimation:self.slideOutAnimationEnabled
andCompletion:nil];
}
@end
注意:这边主要是进行导航跳转时要注意,popToRootViewControllerAnimated跟popToRootAndSwitchToViewController
4:右边的rightViewController
#import "rightViewController.h"
@implementation rightViewController
-(void)viewDidLoad
{
[super viewDidLoad];
self.view.backgroundColor=[UIColor blueColor];
}
@end

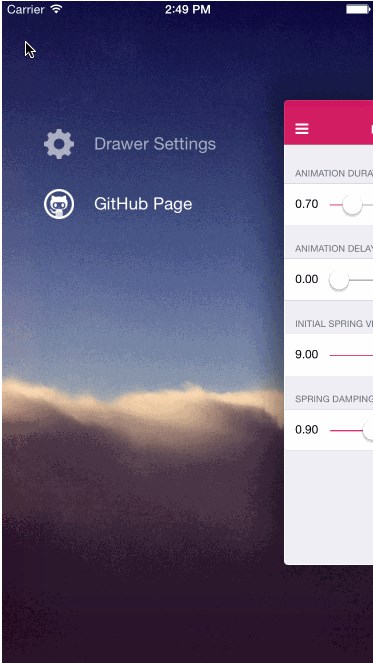

附:另外二个插件也实现更好的效果,地址如下(https://github.com/JVillella/JVFloatingDrawer)效果图如下:

另一个地址如下:(https://github.com/hujewelz/HUSliderMenu)效果图如下:

源代码下载地址:左右侧滑菜单源代码
