Android手势密码的实现

作者：佚名 Android开发编辑：admin 更新时间：2022-07-23

一、大致界面介绍：

图1

图2

图3

图4

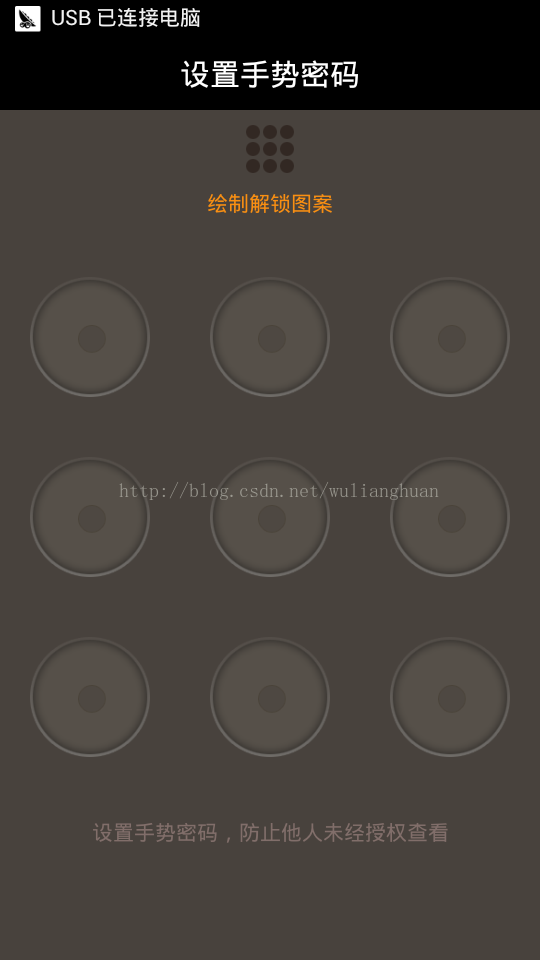

图1：手势密码绘制界面【主要是绘制上方的9个提示图标和9个宫格密码图标】

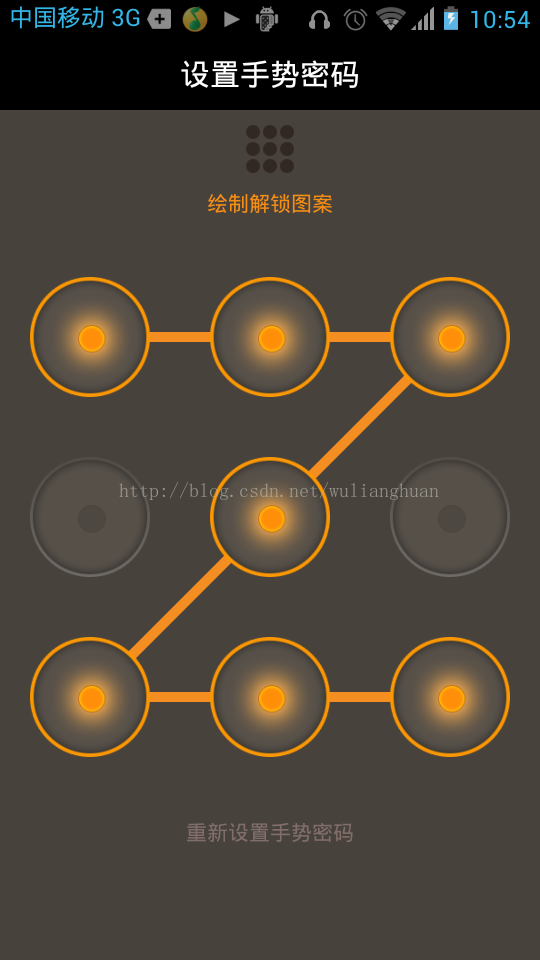

图2：设置手势密码【监听手势的输入，TouchEvent的事件处理，获取输入的手势密码，同时显示在上方的提示区域】

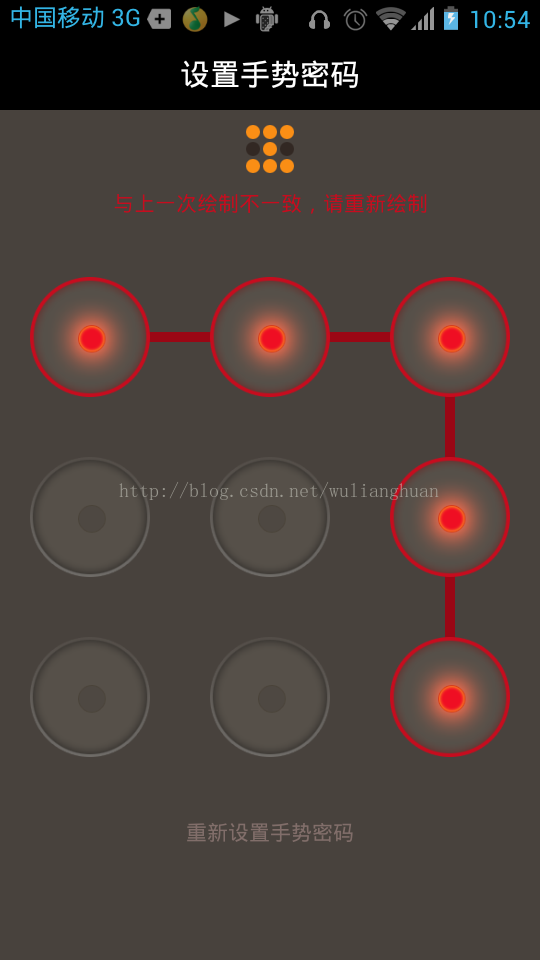

图3：再绘制一次，两次密码不一致提示界面【这里在实现的时候，错误提示文字加了“左右晃动的动画”，错误路径颜色标记为红色】

图4：校验手势密码，输入的密码错误，给予红色路径+错误文字提示

二、实现思路：

1. 正上方的提示区域，用一个类(LockIndicator.java)来实现，自定义view来绘制9个提示图标；

2. 手势密码绘制区域，用一个类(GestureContentView.java)来实现，它继承自ViewGroup里面, 添加9个ImageView来表示图标, 在onLayout（）方法中设置它们的位置；

3. 手势路径绘制，用一个类(GestureDrawline.java)来实现，复写onTouchEvent()方法，在这个方法里面监听TouchEvent事件: ACTION_DOWN、ACTION_MOVE、ACTION_UP事件，来绘制手势连接不同点之间的路径；

4. 9个点的对象，用一个类(GesturePoint.java)来实现，保存它的位置、状态、背景图片等相关信息；

5. 手势密码的获取，判断手指当前的位置，根据滑动路径经过的点，按顺序保存绘制的点的顺序(这里的点顺序从上到下分别是：1,2,3,4,5,6,7,8,9)，不能有重复的点。

三、代码实现步骤：

1.要用一个类来表示这9个点中的第一个点。里面保留有当前点的上下左右的各个位置等属性

2.自定义GroupView，用来装9个点，9个点的显示是通过ImageView。复写onLayout这个方法，让点按需求排列

3.定义一个可以画线的View，复写onTouchEvent方法，在这个方法里面进行画直线的操作

4.判断用户手指当前的位置，取出当前的位置去与那9个点中的每个点的位置进行比较，如果用户点的位置在某一个点之内，那么当那个点置换背景图片。

具体实现代码如下：

1.LockIndicator.java 图案提示类

package com.snda.fund.widget;
import com.snda.fund.R;
import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.graphics.Paint.Style;
import android.graphics.drawable.Drawable;
import android.os.PowerManager;
import android.text.TextUtils;
import android.util.AttributeSet;
import android.util.Log;
import android.view.View;
/**
 *
 * 手势密码图案提示
 * @author wulianghuan
 *
 */
public class LockIndicator extends View {
  private int numRow = 3; // 行
  private int numColum = 3; // 列
  private int patternWidth = 40;
  private int patternHeight = 40;
  private int f = 5;
  private int g = 5;
  private int strokeWidth = 3;
  private Paint paint = null;
  private Drawable patternNoraml = null;
  private Drawable patternPressed = null;
  private String lockPassStr; // 手势密码
  public LockIndicator(Context paramContext) {
    super(paramContext);
  }
  public LockIndicator(Context paramContext, AttributeSet paramAttributeSet) {
    super(paramContext, paramAttributeSet, 0);
    paint = new Paint();
    paint.setAntiAlias(true);
    paint.setStrokeWidth(strokeWidth);
    paint.setStyle(Paint.Style.STROKE);
    patternNoraml = getResources().getDrawable(R.drawable.lock_pattern_node_normal);
    patternPressed = getResources().getDrawable(R.drawable.lock_pattern_node_pressed);
    if (patternPressed != null) {
      patternWidth = patternPressed.getIntrinsicWidth();
      patternHeight = patternPressed.getIntrinsicHeight();
      this.f = (patternWidth / 4);
      this.g = (patternHeight / 4);
      patternPressed.setBounds(0, 0, patternWidth, patternHeight);
      patternNoraml.setBounds(0, 0, patternWidth, patternHeight);
    }
  }
  @Override
  protected void onDraw(Canvas canvas) {
    if ((patternPressed == null) || (patternNoraml == null)) {
      return;
    }
    // 绘制3*3的图标
    for (int i = 0; i < numRow; i++) {
      for (int j = 0; j < numColum; j++) {
        paint.setColor(-16777216);
        int i1 = j * patternHeight + j * this.g;
        int i2 = i * patternWidth + i * this.f;
        canvas.save();
        canvas.translate(i1, i2);
        String curNum = String.valueOf(numColum * i + (j + 1));
        if (!TextUtils.isEmpty(lockPassStr)) {
          if (lockPassStr.indexOf(curNum) == -1) {
            // 未选中
            patternNoraml.draw(canvas);
          } else {
            // 被选中
            patternPressed.draw(canvas);
          }
        } else {
          // 重置状态
          patternNoraml.draw(canvas);
        }
        canvas.restore();
      }
    }
  }
  @Override
  protected void onMeasure(int paramInt1, int paramInt2) {
    if (patternPressed != null)
      setMeasuredDimension(numColum * patternHeight + this.g
          * (-1 + numColum), numRow * patternWidth + this.f
          * (-1 + numRow));
  }
  /**
   * 请求重新绘制
   * @param paramString 手势密码字符序列
   */
  public void setPath(String paramString) {
    lockPassStr = paramString;
    invalidate();
  }
}

2.GestureContentView.java ?手势密码容器类

它继承ViewGroup，通过addView()方法添加子viewe，手势密码的9个输入点(GesturePoint)、GestureDrawline手势密码路径都放在这个容器当中，下面是它的具体实现方法：

package com.wujay.fund.widget;
import java.util.ArrayList;
import java.util.List;
import android.content.Context;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ImageView;
import com.wujay.fund.R;
import com.wujay.fund.common.AppUtil;
import com.wujay.fund.entity.GesturePoint;
import com.wujay.fund.widget.GestureDrawline.GestureCallBack;
/**
 * 手势密码容器类
 *
 */
public class GestureContentView extends ViewGroup {
  private int baseNum = 6;
  private int[] screenDispaly;
  /**
   * 每个点区域的宽度
   */
  private int blockWidth;
  /**
   * 声明一个集合用来封装坐标集合
   */
  private List<GesturePoint> list;
  private Context context;
  private boolean isVerify;
  private GestureDrawline gestureDrawline;
  /**
   * 包含9个ImageView的容器，初始化
   * @param context
   * @param isVerify 是否为校验手势密码
   * @param passWord 用户传入密码
   * @param callBack 手势绘制完毕的回调
   */
  public GestureContentView(Context context, boolean isVerify, String passWord, GestureCallBack callBack) {
    super(context);
    screenDispaly = AppUtil.getScreenDispaly(context);
    blockWidth = screenDispaly[0]/3;
    this.list = new ArrayList<GesturePoint>();
    this.context = context;
    this.isVerify = isVerify;
    // 添加9个图标
    addChild();
    // 初始化一个可以画线的view
    gestureDrawline = new GestureDrawline(context, list, isVerify, passWord, callBack);
  }
  private void addChild(){
    for (int i = 0; i < 9; i++) {
      ImageView image = new ImageView(context);
      image.setBackgroundResource(R.drawable.gesture_node_normal);
      this.addView(image);
      invalidate();
      // 第几行
      int row = i / 3;
      // 第几列
      int col = i % 3;
      // 定义点的每个属性
      int leftX = col*blockWidth+blockWidth/baseNum;
      int topY = row*blockWidth+blockWidth/baseNum;
      int rightX = col*blockWidth+blockWidth-blockWidth/baseNum;
      int bottomY = row*blockWidth+blockWidth-blockWidth/baseNum;
      GesturePoint p = new GesturePoint(leftX, rightX, topY, bottomY, image,i+1);
      this.list.add(p);
    }
  }
  public void setParentView(ViewGroup parent){
    // 得到屏幕的宽度
    int width = screenDispaly[0];
    LayoutParams layoutParams = new LayoutParams(width, width);
    this.setLayoutParams(layoutParams);
    gestureDrawline.setLayoutParams(layoutParams);
    parent.addView(gestureDrawline);
    parent.addView(this);
  }
  @Override
  protected void onLayout(boolean changed, int l, int t, int r, int b) {
    for (int i = 0; i < getChildCount(); i++) {
      //第几行
      int row = i/3;
      //第几列
      int col = i%3;
      View v = getChildAt(i);
      v.layout(col*blockWidth+blockWidth/baseNum, row*blockWidth+blockWidth/baseNum,
          col*blockWidth+blockWidth-blockWidth/baseNum, row*blockWidth+blockWidth-blockWidth/baseNum);
    }
  }
  @Override
  protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
    super.onMeasure(widthMeasureSpec, heightMeasureSpec);
    // 遍历设置每个子view的大小
    for (int i = 0; i < getChildCount(); i++) {
      View v = getChildAt(i);
      v.measure(widthMeasureSpec, heightMeasureSpec);
    }
  }
  /**
   * 保留路径delayTime时间长
   * @param delayTime
   */
  public void clearDrawlineState(long delayTime) {
    gestureDrawline.clearDrawlineState(delayTime);
  }
}

3.GestureDrawline.java 手势密码路径绘制类

根据OnTouchEvent方法的不同事件，ACTION_DOWN、ACTION_MOVE、ACTION_UP分别处理不同的逻辑。

package com.wujay.fund.widget;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import com.wujay.fund.common.AppUtil;
import com.wujay.fund.common.Constants;
import com.wujay.fund.entity.GesturePoint;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Paint.Style;
import android.graphics.PorterDuff;
import android.os.Handler;
import android.util.Log;
import android.util.Pair;
import android.view.MotionEvent;
import android.view.View;
import android.widget.Toast;
/**
 * 手势密码路径绘制
 *
 */
public class GestureDrawline extends View {
  private int mov_x;// 声明起点坐标
  private int mov_y;
  private Paint paint;// 声明画笔
  private Canvas canvas;// 画布
  private Bitmap bitmap;// 位图
  private List<GesturePoint> list;// 装有各个view坐标的集合
  private List<Pair<GesturePoint, GesturePoint>> lineList;// 记录画过的线
  private Map<String, GesturePoint> autoCheckPointMap;// 自动选中的情况点
  private boolean isDrawEnable = true; // 是否允许绘制
  /**
   * 屏幕的宽度和高度
   */
  private int[] screenDispaly;
  /**
   * 手指当前在哪个Point内
   */
  private GesturePoint currentPoint;
  /**
   * 用户绘图的回调
   */
  private GestureCallBack callBack;
  /**
   * 用户当前绘制的图形密码
   */
  private StringBuilder passWordSb;
  /**
   * 是否为校验
   */
  private boolean isVerify;
  /**
   * 用户传入的passWord
   */
  private String passWord;
  public GestureDrawline(Context context, List<GesturePoint> list, boolean isVerify,
      String passWord, GestureCallBack callBack) {
    super(context);
    screenDispaly = AppUtil.getScreenDispaly(context);
    paint = new Paint(Paint.DITHER_FLAG);// 创建一个画笔
    bitmap = Bitmap.createBitmap(screenDispaly[0], screenDispaly[0], Bitmap.Config.ARGB_8888); // 设置位图的宽高
    canvas = new Canvas();
    canvas.setBitmap(bitmap);
    paint.setStyle(Style.STROKE);// 设置非填充
    paint.setStrokeWidth(10);// 笔宽5像素
    paint.setColor(Color.rgb(245, 142, 33));// 设置默认连线颜色
    paint.setAntiAlias(true);// 不显示锯齿
    this.list = list;
    this.lineList = new ArrayList<Pair<GesturePoint, GesturePoint>>();
    initAutoCheckPointMap();
    this.callBack = callBack;
    // 初始化密码缓存
    this.isVerify = isVerify;
    this.passWordSb = new StringBuilder();
    this.passWord = passWord;
  }
  private void initAutoCheckPointMap() {
    autoCheckPointMap = new HashMap<String,GesturePoint>();
    autoCheckPointMap.put("1,3", getGesturePointByNum(2));
    autoCheckPointMap.put("1,7", getGesturePointByNum(4));
    autoCheckPointMap.put("1,9", getGesturePointByNum(5));
    autoCheckPointMap.put("2,8", getGesturePointByNum(5));
    autoCheckPointMap.put("3,7", getGesturePointByNum(5));
    autoCheckPointMap.put("3,9", getGesturePointByNum(6));
    autoCheckPointMap.put("4,6", getGesturePointByNum(5));
    autoCheckPointMap.put("7,9", getGesturePointByNum(8));
  }
  private GesturePoint getGesturePointByNum(int num) {
    for (GesturePoint point : list) {
      if (point.getNum() == num) {
        return point;
      }
    }
    return null;
  }
  // 画位图
  @Override
  protected void onDraw(Canvas canvas) {
    // super.onDraw(canvas);
    canvas.drawBitmap(bitmap, 0, 0, null);
  }
  // 触摸事件
  @Override
  public boolean onTouchEvent(MotionEvent event) {
    if (isDrawEnable == false) {
      // 当期不允许绘制
      return true;
    }
    paint.setColor(Color.rgb(245, 142, 33));// 设置默认连线颜色
    switch (event.getAction()) {
    case MotionEvent.ACTION_DOWN:
      mov_x = (int) event.getX();
      mov_y = (int) event.getY();
      // 判断当前点击的位置是处于哪个点之内
      currentPoint = getPointAt(mov_x, mov_y);
      if (currentPoint != null) {
        currentPoint.setPointState(Constants.POINT_STATE_SELECTED);
        passWordSb.append(currentPoint.getNum());
      }
      // canvas.drawPoint(mov_x, mov_y, paint);// 画点
      invalidate();
      break;
    case MotionEvent.ACTION_MOVE:
      clearScreenAndDrawList();
      // 得到当前移动位置是处于哪个点内
      GesturePoint pointAt = getPointAt((int) event.getX(), (int) event.getY());
      // 代表当前用户手指处于点与点之前
      if (currentPoint == null && pointAt == null) {
        return true;
      } else {// 代表用户的手指移动到了点上
        if (currentPoint == null) {// 先判断当前的point是不是为null
          // 如果为空，那么把手指移动到的点赋值给currentPoint
          currentPoint = pointAt;
          // 把currentPoint这个点设置选中为true;
          currentPoint.setPointState(Constants.POINT_STATE_SELECTED);
          passWordSb.append(currentPoint.getNum());
        }
      }
      if (pointAt == null || currentPoint.equals(pointAt) || Constants.POINT_STATE_SELECTED == pointAt.getPointState()) {
        // 点击移动区域不在圆的区域，或者当前点击的点与当前移动到的点的位置相同，或者当前点击的点处于选中状态
        // 那么以当前的点中心为起点，以手指移动位置为终点画线
        canvas.drawLine(currentPoint.getCenterX(), currentPoint.getCenterY(), event.getX(), event.getY(), paint);// 画线
      } else {
        // 如果当前点击的点与当前移动到的点的位置不同
        // 那么以前前点的中心为起点，以手移动到的点的位置画线
        canvas.drawLine(currentPoint.getCenterX(), currentPoint.getCenterY(), pointAt.getCenterX(), pointAt.getCenterY(), paint);// 画线
        pointAt.setPointState(Constants.POINT_STATE_SELECTED);
        // 判断是否中间点需要选中
        GesturePoint betweenPoint = getBetweenCheckPoint(currentPoint, pointAt);
        if (betweenPoint != null && Constants.POINT_STATE_SELECTED != betweenPoint.getPointState()) {
          // 存在中间点并且没有被选中
          Pair<GesturePoint, GesturePoint> pair1 = new Pair<GesturePoint, GesturePoint>(currentPoint, betweenPoint);
          lineList.add(pair1);
          passWordSb.append(betweenPoint.getNum());
          Pair<GesturePoint, GesturePoint> pair2 = new Pair<GesturePoint, GesturePoint>(betweenPoint, pointAt);
          lineList.add(pair2);
          passWordSb.append(pointAt.getNum());
          // 设置中间点选中
          betweenPoint.setPointState(Constants.POINT_STATE_SELECTED);
          // 赋值当前的point;
          currentPoint = pointAt;
        } else {
          Pair<GesturePoint, GesturePoint> pair = new Pair<GesturePoint, GesturePoint>(currentPoint, pointAt);
          lineList.add(pair);
          passWordSb.append(pointAt.getNum());
          // 赋值当前的point;
          currentPoint = pointAt;
        }
      }
      invalidate();
      break;
    case MotionEvent.ACTION_UP:// 当手指抬起的时候
      if (isVerify) {
        // 手势密码校验
        // 清掉屏幕上所有的线，只画上集合里面保存的线
        if (passWord.equals(passWordSb.toString())) {
          // 代表用户绘制的密码手势与传入的密码相同
          callBack.checkedSuccess();
        } else {
          // 用户绘制的密码与传入的密码不同。
          callBack.checkedFail();
        }
      } else {
        callBack.onGestureCodeInput(passWordSb.toString());
      }
      break;
    default:
      break;
    }
    return true;
  }
  /**
   * 指定时间去清除绘制的状态
   * @param delayTime 延迟执行时间
   */
  public void clearDrawlineState(long delayTime) {
    if (delayTime > 0) {
      // 绘制红色提示路线
      isDrawEnable = false;
      drawErrorPathTip();
    }
    new Handler().postDelayed(new clearStateRunnable(), delayTime);
  }
  /**
   * 清除绘制状态的线程
   */
  final class clearStateRunnable implements Runnable {
    public void run() {
      // 重置passWordSb
      passWordSb = new StringBuilder();
      // 清空保存点的集合
      lineList.clear();
      // 重新绘制界面
      clearScreenAndDrawList();
      for (GesturePoint p : list) {
        p.setPointState(Constants.POINT_STATE_NORMAL);
      }
      invalidate();
      isDrawEnable = true;
    }
  }
  /**
   * 通过点的位置去集合里面查找这个点是包含在哪个Point里面的
   *
   * @param x
   * @param y
   * @return 如果没有找到，则返回null，代表用户当前移动的地方属于点与点之间
   */
  private GesturePoint getPointAt(int x, int y) {
    for (GesturePoint point : list) {
      // 先判断x
      int leftX = point.getLeftX();
      int rightX = point.getRightX();
      if (!(x >= leftX && x < rightX)) {
        // 如果为假，则跳到下一个对比
        continue;
      }
      int topY = point.getTopY();
      int bottomY = point.getBottomY();
      if (!(y >= topY && y < bottomY)) {
        // 如果为假，则跳到下一个对比
        continue;
      }
      // 如果执行到这，那么说明当前点击的点的位置在遍历到点的位置这个地方
      return point;
    }
    return null;
  }
  private GesturePoint getBetweenCheckPoint(GesturePoint pointStart, GesturePoint pointEnd) {
    int startNum = pointStart.getNum();
    int endNum = pointEnd.getNum();
    String key = null;
    if (startNum < endNum) {
      key = startNum + "," + endNum;
    } else {
      key = endNum + "," + startNum;
    }
    return autoCheckPointMap.get(key);
  }
  /**
   * 清掉屏幕上所有的线，然后画出集合里面的线
   */
  private void clearScreenAndDrawList() {
    canvas.drawColor(Color.TRANSPARENT, PorterDuff.Mode.CLEAR);
    for (Pair<GesturePoint, GesturePoint> pair : lineList) {
      canvas.drawLine(pair.first.getCenterX(), pair.first.getCenterY(),
          pair.second.getCenterX(), pair.second.getCenterY(), paint);// 画线
    }
  }
  /**
   * 校验错误/两次绘制不一致提示
   */
  private void drawErrorPathTip() {
    canvas.drawColor(Color.TRANSPARENT, PorterDuff.Mode.CLEAR);
    paint.setColor(Color.rgb(154, 7, 21));// 设置默认线路颜色
    for (Pair<GesturePoint, GesturePoint> pair : lineList) {
      pair.first.setPointState(Constants.POINT_STATE_WRONG);
      pair.second.setPointState(Constants.POINT_STATE_WRONG);
      canvas.drawLine(pair.first.getCenterX(), pair.first.getCenterY(),
          pair.second.getCenterX(), pair.second.getCenterY(), paint);// 画线
    }
    invalidate();
  }
  public interface GestureCallBack {
    /**
     * 用户设置/输入了手势密码
     */
    public abstract void onGestureCodeInput(String inputCode);
    /**
     * 代表用户绘制的密码与传入的密码相同
     */
    public abstract void checkedSuccess();
    /**
     * 代表用户绘制的密码与传入的密码不相同
     */
    public abstract void checkedFail();
  }
}

4.GestureEditActivity.java 手势密码设置界面

手势密码设置

代码如下：

package com.wujay.fund;
import com.wujay.fund.R;
import android.app.Activity;
import android.content.DialogInterface;
import android.content.Intent;
import android.os.Bundle;
import android.text.Html;
import android.text.TextUtils;
import android.view.KeyEvent;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.animation.Animation;
import android.view.animation.AnimationUtils;
import android.widget.FrameLayout;
import android.widget.TextView;
import android.widget.Toast;
import com.wujay.fund.common.Constants;
import com.wujay.fund.widget.GestureContentView;
import com.wujay.fund.widget.GestureDrawline.GestureCallBack;
import com.wujay.fund.widget.LockIndicator;
/**
 *
 * 手势密码设置界面
 *
 */
public class GestureEditActivity extends Activity implements OnClickListener {
  /** 手机号码*/
  public static final String PARAM_PHONE_NUMBER = "PARAM_PHONE_NUMBER";
  /** 意图 */
  public static final String PARAM_INTENT_CODE = "PARAM_INTENT_CODE";
  /** 首次提示绘制手势密码，可以选择跳过 */
  public static final String PARAM_IS_FIRST_ADVICE = "PARAM_IS_FIRST_ADVICE";
  private TextView mTextTitle;
  private TextView mTextCancel;
  private LockIndicator mLockIndicator;
  private TextView mTextTip;
  private FrameLayout mGestureContainer;
  private GestureContentView mGestureContentView;
  private TextView mTextReset;
  private String mParamSetUpcode = null;
  private String mParamPhoneNumber;
  private boolean mIsFirstInput = true;
  private String mFirstPassword = null;
  private String mConfirmPassword = null;
  private int mParamIntentCode;
  @Override
  public void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_gesture_edit);
    setUpViews();
    setUpListeners();
  }
  private void setUpViews() {
    mTextTitle = (TextView) findViewById(R.id.text_title);
    mTextCancel = (TextView) findViewById(R.id.text_cancel);
    mTextReset = (TextView) findViewById(R.id.text_reset);
    mTextReset.setClickable(false);
    mLockIndicator = (LockIndicator) findViewById(R.id.lock_indicator);
    mTextTip = (TextView) findViewById(R.id.text_tip);
    mGestureContainer = (FrameLayout) findViewById(R.id.gesture_container);
    // 初始化一个显示各个点的viewGroup
    mGestureContentView = new GestureContentView(this, false, "", new GestureCallBack() {
      @Override
      public void onGestureCodeInput(String inputCode) {
        if (!isInputPassValidate(inputCode)) {
          mTextTip.setText(Html.fromHtml("<font color='#c70c1e'>最少链接4个点, 请重新输入</font>"));
          mGestureContentView.clearDrawlineState(0L);
          return;
        }
        if (mIsFirstInput) {
          mFirstPassword = inputCode;
          updateCodeList(inputCode);
          mGestureContentView.clearDrawlineState(0L);
          mTextReset.setClickable(true);
          mTextReset.setText(getString(R.string.reset_gesture_code));
        } else {
          if (inputCode.equals(mFirstPassword)) {
              Toast.makeText(GestureEditActivity.this, "设置成功", Toast.LENGTH_SHORT).show();
            mGestureContentView.clearDrawlineState(0L);
            GestureEditActivity.this.finish();
          } else {
            mTextTip.setText(Html.fromHtml("<font color='#c70c1e'>与上一次绘制不一致，请重新绘制</font>"));
            // 左右移动动画
            Animation shakeAnimation = AnimationUtils.loadAnimation(GestureEditActivity.this, R.anim.shake);
            mTextTip.startAnimation(shakeAnimation);
            // 保持绘制的线，1.5秒后清除
            mGestureContentView.clearDrawlineState(1300L);
          }
        }
        mIsFirstInput = false;
      }
      @Override
      public void checkedSuccess() {
      }
      @Override
      public void checkedFail() {
      }
    });
    // 设置手势解锁显示到哪个布局里面
    mGestureContentView.setParentView(mGestureContainer);
    updateCodeList("");
  }
  private void setUpListeners() {
    mTextCancel.setOnClickListener(this);
    mTextReset.setOnClickListener(this);
  }
  private void updateCodeList(String inputCode) {
    // 更新选择的图案
    mLockIndicator.setPath(inputCode);
  }
  @Override
  public void onClick(View v) {
    switch (v.getId()) {
    case R.id.text_cancel:
      this.finish();
      break;
    case R.id.text_reset:
      mIsFirstInput = true;
      updateCodeList("");
      mTextTip.setText(getString(R.string.set_gesture_pattern));
      break;
    default:
      break;
    }
  }
  private boolean isInputPassValidate(String inputPassword) {
    if (TextUtils.isEmpty(inputPassword) || inputPassword.length() < 4) {
      return false;
    }
    return true;
  }
}

5.GestureVerifyActivity.java 手势密码校验界面

代码如下：

package com.wujay.fund;
import com.wujay.fund.R;
import com.wujay.fund.widget.GestureContentView;
import com.wujay.fund.widget.GestureDrawline.GestureCallBack;
import android.app.Activity;
import android.app.Dialog;
import android.content.DialogInterface;
import android.content.DialogInterface.OnClickListener;
import android.content.Intent;
import android.os.Bundle;
import android.text.Html;
import android.text.TextUtils;
import android.view.KeyEvent;
import android.view.View;
import android.view.animation.Animation;
import android.view.animation.AnimationUtils;
import android.widget.FrameLayout;
import android.widget.ImageView;
import android.widget.RelativeLayout;
import android.widget.TextView;
import android.widget.Toast;
/**
 *
 * 手势绘制/校验界面
 *
 */
public class GestureVerifyActivity extends Activity implements android.view.View.OnClickListener {
  /** 手机号码*/
  public static final String PARAM_PHONE_NUMBER = "PARAM_PHONE_NUMBER";
  /** 意图 */
  public static final String PARAM_INTENT_CODE = "PARAM_INTENT_CODE";
  private RelativeLayout mTopLayout;
  private TextView mTextTitle;
  private TextView mTextCancel;
  private ImageView mImgUserLogo;
  private TextView mTextPhoneNumber;
  private TextView mTextTip;
  private FrameLayout mGestureContainer;
  private GestureContentView mGestureContentView;
  private TextView mTextForget;
  private TextView mTextOther;
  private String mParamPhoneNumber;
  private long mExitTime = 0;
  private int mParamIntentCode;
  @Override
  public void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_gesture_verify);
    ObtainExtraData();
    setUpViews();
    setUpListeners();
  }
  private void ObtainExtraData() {
    mParamPhoneNumber = getIntent().getStringExtra(PARAM_PHONE_NUMBER);
    mParamIntentCode = getIntent().getIntExtra(PARAM_INTENT_CODE, 0);
  }
  private void setUpViews() {
    mTopLayout = (RelativeLayout) findViewById(R.id.top_layout);
    mTextTitle = (TextView) findViewById(R.id.text_title);
    mTextCancel = (TextView) findViewById(R.id.text_cancel);
    mImgUserLogo = (ImageView) findViewById(R.id.user_logo);
    mTextPhoneNumber = (TextView) findViewById(R.id.text_phone_number);
    mTextTip = (TextView) findViewById(R.id.text_tip);
    mGestureContainer = (FrameLayout) findViewById(R.id.gesture_container);
    mTextForget = (TextView) findViewById(R.id.text_forget_gesture);
    mTextOther = (TextView) findViewById(R.id.text_other_account);
    // 初始化一个显示各个点的viewGroup
    mGestureContentView = new GestureContentView(this, true, "1235789",
        new GestureCallBack() {
          @Override
          public void onGestureCodeInput(String inputCode) {
          }
          @Override
          public void checkedSuccess() {
            mGestureContentView.clearDrawlineState(0L);
            Toast.makeText(GestureVerifyActivity.this, "密码正确", 1000).show();
            GestureVerifyActivity.this.finish();
          }
          @Override
          public void checkedFail() {
            mGestureContentView.clearDrawlineState(1300L);
            mTextTip.setVisibility(View.VISIBLE);
            mTextTip.setText(Html
                .fromHtml("<font color='#c70c1e'>密码错误</font>"));
            // 左右移动动画
            Animation shakeAnimation = AnimationUtils.loadAnimation(GestureVerifyActivity.this, R.anim.shake);
            mTextTip.startAnimation(shakeAnimation);
          }
        });
    // 设置手势解锁显示到哪个布局里面
    mGestureContentView.setParentView(mGestureContainer);
  }
  private void setUpListeners() {
    mTextCancel.setOnClickListener(this);
    mTextForget.setOnClickListener(this);
    mTextOther.setOnClickListener(this);
  }
  private String getProtectedMobile(String phoneNumber) {
    if (TextUtils.isEmpty(phoneNumber) || phoneNumber.length() < 11) {
      return "";
    }
    StringBuilder builder = new StringBuilder();
    builder.append(phoneNumber.subSequence(0,3));
    builder.append("****");
    builder.append(phoneNumber.subSequence(7,11));
    return builder.toString();
  }
  @Override
  public void onClick(View v) {
    switch (v.getId()) {
    case R.id.text_cancel:
      this.finish();
      break;
    default:
      break;
    }
  }
}

以上是手势密码实现的关键代码，我把项目中的模块代码整理出来，新建了一个project，供大家分享和交流。欲了解更多资讯请登录脚本之家网站了解！

上一篇文章： Android中AlertDialog各种对话框的用法实例详解
下一篇文章： Android中Glide加载库的图片缓存配置究极指南

Android手势密码的实现

网站建设问答

网站建设开发

网站需求分析
