本文实例讲解了Android 虚化图片、模糊图片、图片毛玻璃效果的实现方法，具体内容如下

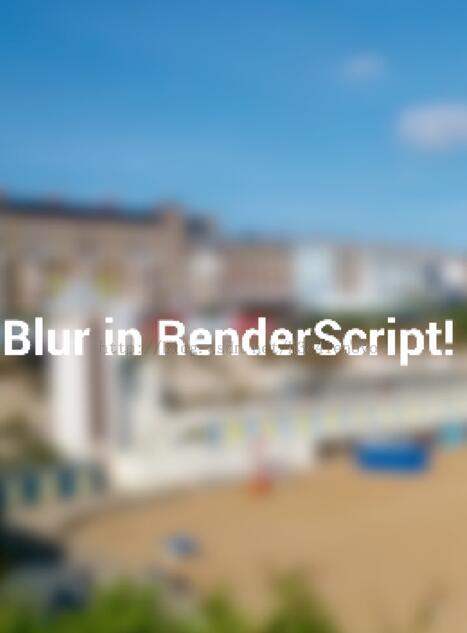

效果如图：

在Android可以用RenderScript方便的实现这个方法：

private void blur(Bitmap bkg, View view, float radius) {
  Bitmap overlay = Bitmap.createBitmap(view.getMeasuredWidth(), view.getMeasuredHeight(), Bitmap.Config.ARGB_8888);
  Canvas canvas = new Canvas(overlay);
  canvas.drawBitmap(bkg, -view.getLeft(), -view.getTop(), null);
  RenderScript rs = RenderScript.create(this);
  Allocation overlayAlloc = Allocation.createFromBitmap(rs, overlay);
  ScriptIntrinsicBlur blur = ScriptIntrinsicBlur.create(rs, overlayAlloc.getElement());
  blur.setInput(overlayAlloc);
  blur.setRadius(radius);
  blur.forEach(overlayAlloc);
  overlayAlloc.copyTo(overlay);
  view.setBackground(new BitmapDrawable(getResources(), overlay));
  rs.destroy();
 }

但是RenderScript的这个方法需要Android API17，也就说需要在Android 4.2上才能实现。
低于Android4.2可以用Java原生代码实现。但是效率会低不少：这完全是一种妥协的方式，不推荐。

/*
  * This method was copied from http://stackoverflow.com/a/10028267/694378.
  * The only modifications I've made are to remove a couple of Log
  * statements which could slow things down slightly.
  */
 public Bitmap fastblur(Bitmap sentBitmap, int radius) {

  // Stack Blur v1.0 from
  // http://www.quasimondo.com/StackBlurForCanvas/StackBlurDemo.html
  //
  // Java Author: Mario Klingemann <mario at quasimondo.com>
  // http://incubator.quasimondo.com
  // created Feburary 29, 2004
  // Android port : Yahel Bouaziz <yahel at kayenko.com>
  // http://www.kayenko.com
  // ported april 5th, 2012

  // This is a compromise between Gaussian Blur and Box blur
  // It creates much better looking blurs than Box Blur, but is
  // 7x faster than my Gaussian Blur implementation.
  //
  // I called it Stack Blur because this describes best how this
  // filter works internally: it creates a kind of moving stack
  // of colors whilst scanning through the image. Thereby it
  // just has to add one new block of color to the right side
  // of the stack and remove the leftmost color. The remaining
  // colors on the topmost layer of the stack are either added on
  // or reduced by one, depending on if they are on the right or
  // on the left side of the stack.
  //
  // If you are using this algorithm in your code please add
  // the following line:
  //
  // Stack Blur Algorithm by Mario Klingemann <[email protected]>

  Bitmap bitmap = sentBitmap.copy(sentBitmap.getConfig(), true);

  if (radius < 1) {
   return (null);
  }

  int w = bitmap.getWidth();
  int h = bitmap.getHeight();

  int[] pix = new int[w * h];
  bitmap.getPixels(pix, 0, w, 0, 0, w, h);

  int wm = w - 1;
  int hm = h - 1;
  int wh = w * h;
  int div = radius + radius + 1;

  int r[] = new int[wh];
  int g[] = new int[wh];
  int b[] = new int[wh];
  int rsum, gsum, bsum, x, y, i, p, yp, yi, yw;
  int vmin[] = new int[Math.max(w, h)];

  int divsum = (div + 1) >> 1;
  divsum *= divsum;
  int dv[] = new int[256 * divsum];
  for (i = 0; i < 256 * divsum; i++) {
   dv[i] = (i / divsum);
  }

  yw = yi = 0;

  int[][] stack = new int[div][3];
  int stackpointer;
  int stackstart;
  int[] sir;
  int rbs;
  int r1 = radius + 1;
  int routsum, goutsum, boutsum;
  int rinsum, ginsum, binsum;

  for (y = 0; y < h; y++) {
   rinsum = ginsum = binsum = routsum = goutsum = boutsum = rsum = gsum = bsum = 0;
   for (i = -radius; i <= radius; i++) {
    p = pix[yi + Math.min(wm, Math.max(i, 0))];
    sir = stack[i + radius];
    sir[0] = (p & 0xff0000) >> 16;
    sir[1] = (p & 0x00ff00) >> 8;
    sir[2] = (p & 0x0000ff);
    rbs = r1 - Math.abs(i);
    rsum += sir[0] * rbs;
    gsum += sir[1] * rbs;
    bsum += sir[2] * rbs;
    if (i > 0) {
     rinsum += sir[0];
     ginsum += sir[1];
     binsum += sir[2];
    } else {
     routsum += sir[0];
     goutsum += sir[1];
     boutsum += sir[2];
    }
   }
   stackpointer = radius;

   for (x = 0; x < w; x++) {

    r[yi] = dv[rsum];
    g[yi] = dv[gsum];
    b[yi] = dv[bsum];

    rsum -= routsum;
    gsum -= goutsum;
    bsum -= boutsum;

    stackstart = stackpointer - radius + div;
    sir = stack[stackstart % div];

    routsum -= sir[0];
    goutsum -= sir[1];
    boutsum -= sir[2];

    if (y == 0) {
     vmin[x] = Math.min(x + radius + 1, wm);
    }
    p = pix[yw + vmin[x]];

    sir[0] = (p & 0xff0000) >> 16;
    sir[1] = (p & 0x00ff00) >> 8;
    sir[2] = (p & 0x0000ff);

    rinsum += sir[0];
    ginsum += sir[1];
    binsum += sir[2];

    rsum += rinsum;
    gsum += ginsum;
    bsum += binsum;

    stackpointer = (stackpointer + 1) % div;
    sir = stack[(stackpointer) % div];

    routsum += sir[0];
    goutsum += sir[1];
    boutsum += sir[2];

    rinsum -= sir[0];
    ginsum -= sir[1];
    binsum -= sir[2];

    yi++;
   }
   yw += w;
  }
  for (x = 0; x < w; x++) {
   rinsum = ginsum = binsum = routsum = goutsum = boutsum = rsum = gsum = bsum = 0;
   yp = -radius * w;
   for (i = -radius; i <= radius; i++) {
    yi = Math.max(0, yp) + x;

    sir = stack[i + radius];

    sir[0] = r[yi];
    sir[1] = g[yi];
    sir[2] = b[yi];

    rbs = r1 - Math.abs(i);

    rsum += r[yi] * rbs;
    gsum += g[yi] * rbs;
    bsum += b[yi] * rbs;

    if (i > 0) {
     rinsum += sir[0];
     ginsum += sir[1];
     binsum += sir[2];
    } else {
     routsum += sir[0];
     goutsum += sir[1];
     boutsum += sir[2];
    }

    if (i < hm) {
     yp += w;
    }
   }
   yi = x;
   stackpointer = radius;
   for (y = 0; y < h; y++) {
    // Preserve alpha channel: ( 0xff000000 & pix[yi] )
    pix[yi] = ( 0xff000000 & pix[yi] ) | ( dv[rsum] << 16 ) | ( dv[gsum] << 8 ) | dv[bsum];

    rsum -= routsum;
    gsum -= goutsum;
    bsum -= boutsum;

    stackstart = stackpointer - radius + div;
    sir = stack[stackstart % div];

    routsum -= sir[0];
    goutsum -= sir[1];
    boutsum -= sir[2];

    if (x == 0) {
     vmin[y] = Math.min(y + r1, hm) * w;
    }
    p = x + vmin[y];

    sir[0] = r[p];
    sir[1] = g[p];
    sir[2] = b[p];

    rinsum += sir[0];
    ginsum += sir[1];
    binsum += sir[2];

    rsum += rinsum;
    gsum += ginsum;
    bsum += binsum;

    stackpointer = (stackpointer + 1) % div;
    sir = stack[stackpointer];

    routsum += sir[0];
    goutsum += sir[1];
    boutsum += sir[2];

    rinsum -= sir[0];
    ginsum -= sir[1];
    binsum -= sir[2];

    yi += w;
   }
  }

  bitmap.setPixels(pix, 0, w, 0, 0, w, h);

  return (bitmap);
 }

以上就是本文的全部内容，希望对大家学习Android软件编程有所帮助。
