android 之Spinner下拉菜单实现级联

作者：佚名 Android开发编辑：admin 更新时间：2022-07-23

效果图如下：

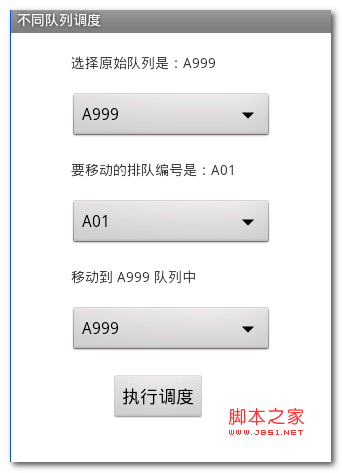

默认第一次加载

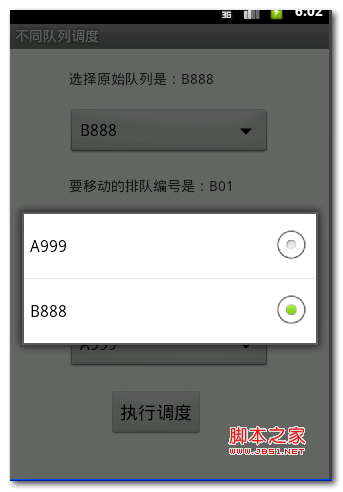

选择原始队列：

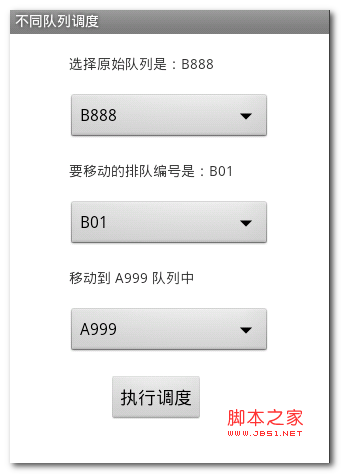

级联效果图：

关键代码给下拉列表选中事件监听绑定Id ：
复制代码代码如下:
int pos = firsthand_dlbh_pinner.getSelectedItemPosition();
firsthand_pdbh_adapter = new ArrayAdapter<String>(context,
android.R.layout.simple_spinner_item, queu_info[pos]);
firsthand_pdbh_spinner.setAdapter(firsthand_pdbh_adapter);

完整代码：

布局文件代码：

复制代码代码如下:
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="vertical" >

</LinearLayout>

JAVA 程序代码：
复制代码代码如下:
import android.app.Activity;
import android.content.Context;

import android.os.Bundle;

import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.Spinner;
import android.widget.TextView;
import android.widget.AdapterView.OnItemSelectedListener;

public class ManageInfo_Activity extends Activity implements OnClickListener {
private Context context;
private static final String[] queuilist = { "A999", "B888" };
private static final String[] default_linfo = { "A01", "A02", "A03", "A04",
   "A05", "A06", "A07", "A08", "A09", "A10", "A11" };
private static final String[][] queu_info = new String[][] {
   { "A01", "A02", "A03", "A04", "A05", "A06", "A07", "A08", "A09",
     "A10", "A11" },
   { "B01", "B02", "B03", "B04", "B05", "B06", "B07", "B08", "B09",
     "B10", "B11" } };
private TextView firsthand_dlbh_view;
private Spinner firsthand_dlbh_pinner;
private ArrayAdapter<String> firsthand_dlbh_adapter;

private TextView firsthand_pdbh_view;
private Spinner firsthand_pdbh_spinner;
private ArrayAdapter<String> firsthand_pdbh_adapter;

private TextView target_dlbh_view;
private Spinner target_dlbh_spinner;
private ArrayAdapter<String> target_dlbh_adapter;

private String firsthand_dlbh = "";
private String firsthand_pdbh = "";
private String target_dlbh = "";

@Override
protected void onCreate(Bundle savedInstanceState) {
  // TODO Auto-generated method stub
  super.onCreate(savedInstanceState);
  setContentView(R.layout.activity_manageinfo);

context = this;

  // 定义原始队列编号下拉菜单
  firsthand_dlbh_view = (TextView) findViewById(R.id.firsthand_dlbh);
  firsthand_dlbh_pinner = (Spinner) findViewById(R.id.firsthand_dlbh_pinner);
  // 将可选内容与ArrayAdapter连接起来
  firsthand_dlbh_adapter = new ArrayAdapter<String>(this,
    android.R.layout.simple_spinner_item, queuilist);
  // 设置下拉列表的风格
  firsthand_dlbh_adapter
    .setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);
  // 将adapter 添加到spinner中
  firsthand_dlbh_pinner.setAdapter(firsthand_dlbh_adapter);
  // 添加事件Spinner事件监听
  firsthand_dlbh_pinner
    .setOnItemSelectedListener(new FirsthanddlbhSpinnerSelectedListener());
  // 设置默认值
  firsthand_dlbh_pinner.setVisibility(View.VISIBLE);

  // 定义原始排队编号下拉菜单
  firsthand_pdbh_view = (TextView) findViewById(R.id.firsthand_pdbh);
  firsthand_pdbh_spinner = (Spinner) findViewById(R.id.firsthand_pdbh_pinner);
  // 将可选内容与ArrayAdapter连接起来
  firsthand_pdbh_adapter = new ArrayAdapter<String>(this,
    android.R.layout.simple_spinner_item, default_linfo);
  // 设置下拉列表的风格
  firsthand_pdbh_adapter
    .setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);
  // 将adapter 添加到spinner中
  firsthand_pdbh_spinner.setAdapter(firsthand_pdbh_adapter);
  // 添加事件Spinner事件监听
  firsthand_pdbh_spinner
    .setOnItemSelectedListener(new FirsthandpdbhSpinnerSelectedListener());
  // 设置默认值
  firsthand_pdbh_spinner.setVisibility(View.VISIBLE);

  // 定义目标队列下拉菜单
  target_dlbh_view = (TextView) findViewById(R.id.target_dlbh);
  target_dlbh_spinner = (Spinner) findViewById(R.id.target_dlbh_spinner);
  // 将可选内容与ArrayAdapter连接起来
  target_dlbh_adapter = new ArrayAdapter<String>(this,
    android.R.layout.simple_spinner_item, queuilist);
  // 设置下拉列表的风格
  target_dlbh_adapter
    .setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);
  // 将adapter 添加到spinner中
  target_dlbh_spinner.setAdapter(target_dlbh_adapter);
  // 添加事件Spinner事件监听
  target_dlbh_spinner
    .setOnItemSelectedListener(new TargetdlbhpinnerSelectedListener());
  // 设置默认值
  target_dlbh_spinner.setVisibility(View.VISIBLE);

Button diff_manage_operation = (Button) findViewById(R.id.diff_manage_operation);
diff_manage_operation.setOnClickListener(this);

}

// 选择目标排队编号事件监听器
class FirsthanddlbhSpinnerSelectedListener implements
OnItemSelectedListener {

  public void onItemSelected(AdapterView<?> arg0, View arg1, int arg2,
    long arg3) {
   firsthand_dlbh = queuilist[arg2];
   firsthand_dlbh_view.setText("选择原始队列是：" + queuilist[arg2]);
   int pos = firsthand_dlbh_pinner.getSelectedItemPosition();
   firsthand_pdbh_adapter = new ArrayAdapter<String>(context,
     android.R.layout.simple_spinner_item, queu_info[pos]);
   firsthand_pdbh_spinner.setAdapter(firsthand_pdbh_adapter);

}

public void onNothingSelected(AdapterView<?> arg0) {
}
}

// 选择目标排队编号事件监听器
class FirsthandpdbhSpinnerSelectedListener implements
OnItemSelectedListener {

  public void onItemSelected(AdapterView<?> arg0, View arg1, int arg2,
    long arg3) {
   firsthand_pdbh = (String) firsthand_pdbh_spinner
     .getItemAtPosition(arg2);
   firsthand_pdbh_view.setText("要移动的排队编号是："
     + (String) firsthand_pdbh_spinner.getItemAtPosition(arg2));
  }

public void onNothingSelected(AdapterView<?> arg0) {
}
}

// //选择参照排队编号事件监听器
class TargetdlbhpinnerSelectedListener implements OnItemSelectedListener {

  public void onItemSelected(AdapterView<?> arg0, View arg1, int arg2,
    long arg3) {
   target_dlbh = queuilist[arg2];
   target_dlbh_view.setText("移动到 " + queuilist[arg2] + " 队列中 ");
  }

public void onNothingSelected(AdapterView<?> arg0) {
}
}

@Override
public void onClick(View v) {

System.out.println(" 进入同一队列调度环节");

System.out.println("执行把排队编号 " + firsthand_pdbh + " 从 " + firsthand_dlbh
+ " 队列中移动到 " + target_dlbh + " 队列的末尾操作 ");
// DiffMangerQuening( user_name, estination_code, firsthand_dlbh, firsthand_dlbh,target_dlbh); // switch(v.getId()){//根据点击不同的按钮，弹出相应的提示

}

@Override
public boolean onCreateOptionsMenu(Menu menu) {
  // Inflate the menu; this adds items to the action bar if it is present.
  getMenuInflater().inflate(R.menu.activity_main, menu);
  return true;
}
}
